Share a graph and manage permissions

Sharing is a convenient way to give users read access to your graph model or QuerySet for downstream consumption. When you share, the recipient gets item-level access without needing a workspace role. You can customize the permissions that the shared recipient receives.

Prerequisites

Before you start, verify that:

1. You have an Admin or Member role in the workspace that contains the graph model or QuerySet.
2. The graph model is saved and the queryable graph loaded successfully. For more information, see Manage data in graph.

Share a graph model

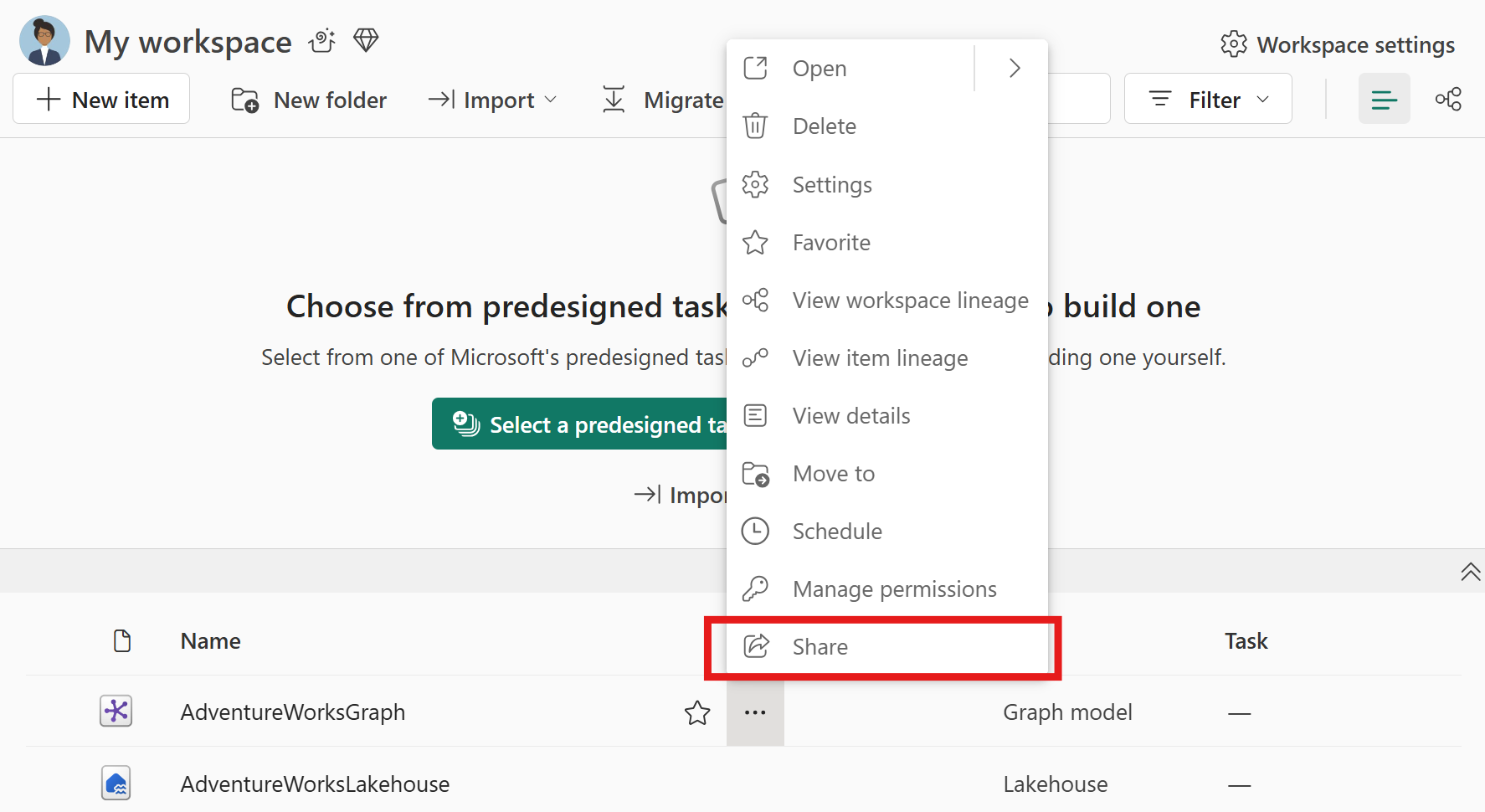

1. In your Microsoft Fabric workspace, locate the graph model you want to share.
2. Select the ellipsis (...) next to the graph model, and then select Share.

1. In the sharing dialog, enter the name or email address of the person or group you want to share with.

2. Select the permissions you want to grant. Read permission is always included by default.

3. Optionally, add a message and select whether to notify the recipient by email.

4. Select Grant access.

The shared recipient is notified by email that they can now find the graph model in the OneLake catalog and open it. The level of access depends on the permissions you granted. In the following screenshot, the recipient has Read, Edit, and Run algorithms (private preview) permissions, which means they can view the graph model structure, edit it, and run queries against the queryable graph.

Share a QuerySet

You share a QuerySet in a way similar to how you share a graph model.

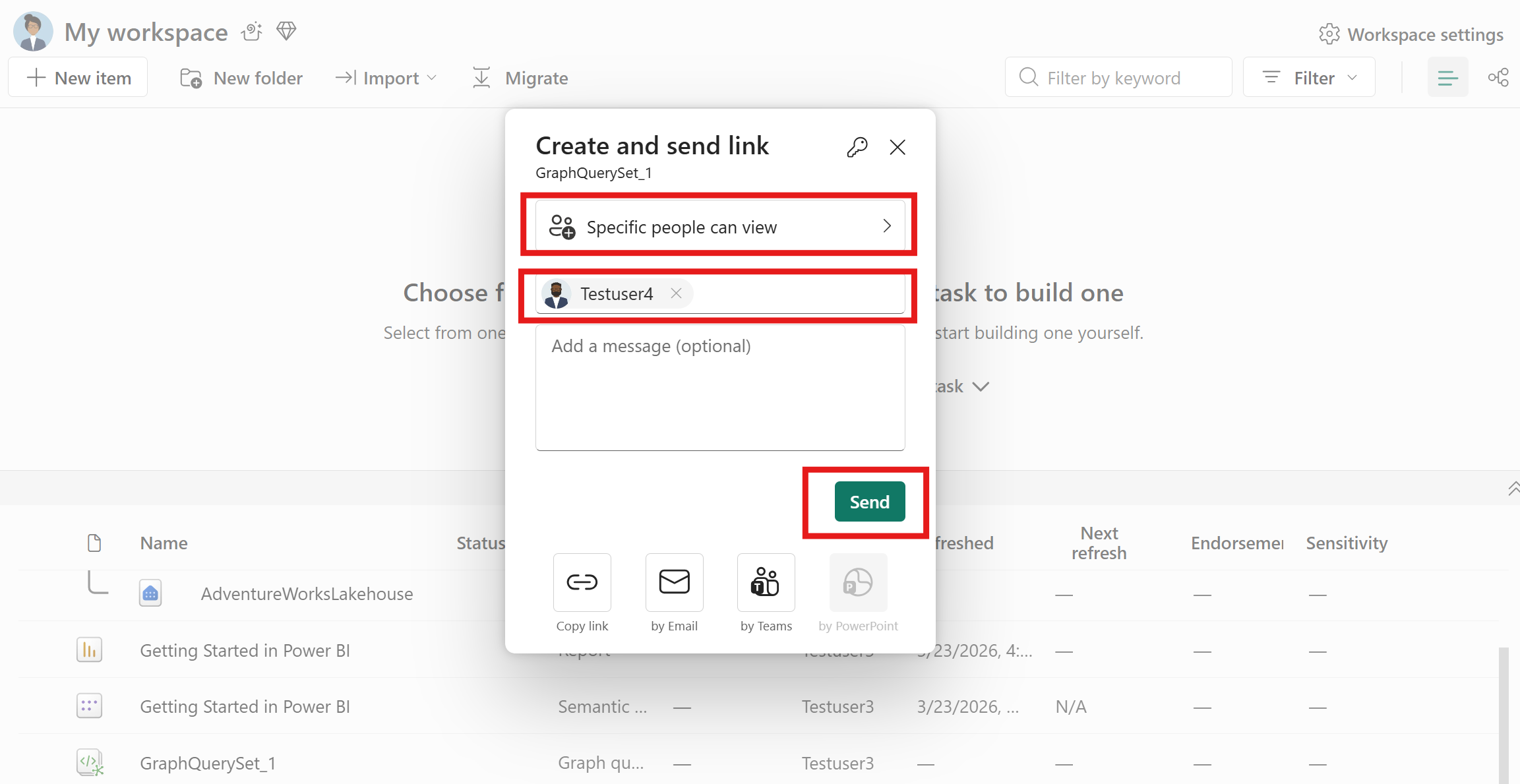

1. In your workspace, locate the QuerySet you want to share.

2. Select the ellipsis (...) next to the QuerySet, and then select Share.

3. Enter the recipient's name or email address and select Specific people can view to set permissions.

4. Optionally add a message and then select Send.

Permission levels

When you share a graph item, you can grant the following permissions. Read permission is always included by default.

Manage permissions

Use the Manage permissions page to view who has access to your graph item and modify or revoke permissions.

1. In your workspace, select the ellipsis (...) next to the graph model or QuerySet.
2. Select Manage permissions.

On this page, you can see:

• Users who have access through workspace roles, along with their role and permissions.
• Users who received access through item sharing, along with the specific permissions granted.

Modify or remove access

• To remove all item permissions for a user, select the ellipsis (...) next to their name and choose Remove access.
• To change specific permissions, select the ellipsis (...) and choose the appropriate option to add or remove individual permissions.

Underlying data access

Graph models read data from tables in a lakehouse. The following considerations apply to data access:

• Users within the workspace who have access to the underlying data in the lakehouse can model and query the graph.
• All users need read access to the underlying graph model item to run queries against it from a QuerySet. If you share a QuerySet, also share the graph model or add the recipient to a workspace role.
• Support for column-level and row-level OneLake security is under development.

Limitations

• Permission changes can take up to two hours to take effect if the user is currently signed in. The changes appear in Manage permissions immediately.
• Sharing is available through the Fabric user experience only. Programmatic sharing through APIs isn't currently supported.
• Shared recipients receive access only to the specific item shared, not to other items in the workspace.
• During preview, sharing options and available permissions might change as new capabilities are added.
