Azure attribute-based access control (Azure ABAC) repository permissions in Azure Container Registry

Azure Container Registry (ACR) supports Azure attribute-based access control (Azure ABAC) for managing repository permissions. This feature enhances security by enabling more granular permissions management to container registry repositories.

Azure ABAC builds upon Azure role-based access control (Azure RBAC) by introducing repository-specific conditions in role assignments. By using Azure ABAC, you can grant a security principal access to a repository resource based on attributes.

This article describes how to enable Azure ABAC for repository permissions in your container registry, the effects of changing the role assignment permissions mode, and how to configure role assignments with ABAC conditions.

Configure role assignment permissions mode setting

To use Azure ABAC to manage repository permissions, set the Role assignment permissions mode for your registry to RBAC Registry + ABAC Repository Permissions. This mode allows you to use optional ABAC conditions to scope role assignments to specific repositories, in addition to RBAC role assignments by using ACR built-in roles.

You can configure the Role assignment permissions mode when creating your registry, or you can update the setting on any existing registry. You can set this configuration through the Azure portal or the Azure CLI.

If you change the setting for an existing registry, be sure to understand the effects on existing role assignments and tasks as described in the following sections.

Note

Ensure that you have the latest version of the Azure CLI installed by running the Azure CLI command az upgrade. Additionally, if you previously participated in the private preview of this feature, you might have installed a custom private preview extension to manage ACR ABAC. This custom extension is no longer needed and should be uninstalled (to avoid conflicts) by running the Azure CLI command az extension remove --name acrabac.

Effect on existing role assignments

If you configure a registry to use RBAC Registry + ABAC Repository Permissions, be aware that some existing role assignments aren't honored or have different effects. A different set of ACR built-in roles apply to ABAC-enabled registries.

For example, the AcrPull, AcrPush, and AcrDelete roles aren't honored in an ABAC-enabled registry. Instead, in ABAC-enabled registries, use the Container Registry Repository Reader, Container Registry Repository Writer, and Container Registry Repository Contributor roles to grant either registry-wide or repository-specific image permissions.

Additionally, privileged roles such as Owner, Contributor, and Reader have different effects in an ABAC-enabled registry. In these repositories, these privileged roles grant only control plane permissions to create, update, and delete the registry itself, without granting data plane permissions to the repositories and images in the registry.

For more information on these roles, see Azure Container Registry permissions and role assignments overview. Alternatively, consult the ACR built-in roles reference for an in-depth description of each role.

Effect on ACR Tasks, Quick Tasks, Quick Builds, and Quick Runs

If you configure a registry to use RBAC Registry + ABAC Repository Permissions, new and existing ACR Tasks, as well as Quick Tasks, Quick Builds, and Quick Runs, are affected. They no longer have default data plane access to an ABAC-enabled source registry and its content.

To understand the effects of this change—and how to grant data plane access for ACR Tasks, Quick Tasks, Quick Builds, and Quick Runs in ABAC-enabled source registries—see Effects of enabling ABAC on ACR Tasks, Quick Tasks, Quick Builds, and Quick Runs.

Create a registry with ABAC enabled

You can enable Azure ABAC by using the Azure portal or the Azure CLI.

Azure portal
Azure CLI

When creating a new registry through Azure portal, select RBAC Registry + ABAC Repository Permissions for Role assignment permissions mode.

Screenshot showing the container registry creation settings in the portal.

When running az acr create, use the --role-assignment-mode parameter to set the role assignment permissions mode. Specify rbac-abac to create a registry with Azure ABAC enabled:

az acr create --name <registry-name> --resource-group <resource-group> --sku <sku> --role-assignment-mode 'rbac-abac' --location <location>

Update an existing registry to enable ABAC

Important

Changing the role assignment permissions mode of an existing registry can affect existing role assignments and tasks, as described in the previous sections. Be sure to review these effects before changing the setting.

Azure portal
Azure CLI

To view the existing role assignment permissions mode of a registry, go to the registry in the Azure portal. In the service menu, under Settings, select Properties, then check the Role assignment permissions mode setting.

To enable Azure RBAC, select RBAC Registry + ABAC Repository Permissions, then select Save.

When running az acr update, use the --role-assignment-mode parameter to set the registry role assignment permissions mode. Specify rbac-abac to create a registry with RBAC Registry + ABAC Repository Permissions enabled.

To show the current role assignment permissions mode of a registry, run the following command:

az acr show --name <registry-name> --resource-group <resource-group> --query "roleAssignmentMode"

To update an existing registry to enable Azure ABAC, run the following command:

az acr update --name <registry-name> --resource-group <resource-group> --role-assignment-mode 'rbac-abac'

Configure Azure ABAC repository permissions

You can use either the Azure portal or Azure CLI to assign Azure ABAC conditions to scope role assignments to specific repositories.

Tip

The Azure portal supports a limited number of ABAC conditions per role assignment. To add more ABAC conditions, use the Azure CLI.

This section provides examples of how to add ABAC conditions for a specific repository, a repository prefix (wildcard), or multiple repository prefixes (multiple wildcards).

ABAC-enabled built-in roles

The following ACR built-in roles are ABAC-enabled roles. You can specify optional ABAC conditions to the following roles to scope the role assignments to specific repositories.

Container Registry Repository Reader - ABAC-enabled role that grants permissions to read images, tags, and metadata within repositories in a registry.
Container Registry Repository Writer - ABAC-enabled role that grants permissions to read, write, and update images, tags, and metadata within repositories in a registry.
Container Registry Repository Contributor - ABAC-enabled role that grants permissions to read, write, update, and delete images, tags, and metadata within repositories in a registry.

These roles don't support catalog listing permissions to list repositories in a registry. To list all repositories in a registry (without granting permissions to read repository content), you must also assign the Container Registry Repository Catalog Lister role. This separate role doesn't support ABAC conditions, so it always has permissions to list all repositories in a registry.

Important

If you assign an ABAC-enabled role without ABAC conditions, the role assignment isn't scoped to repositories. This role assignment acts as a registry-wide role assignment, granting permissions to all repositories in the registry. To scope a role assignment to specific repositories, include ABAC conditions when assigning an ABAC-enabled role.

For more information on these roles, see Azure Container Registry permissions and role assignments overview and the ACR built-in roles reference.

Scope role assignment to a specific repository

This example assigns the Container Registry Repository Reader role to grant pull permissions to a single repository. By adding ABAC conditions, the role assignment lets the identity pull images, view tags, and read metadata only from the specified repository, preventing access to other repositories in the registry.

Azure portal
Azure CLI

Go to the registry in the Azure portal. In the service menu, select Access control (IAM).
Select Add, and then select Add role assignment.
Search for Container Registry Repository Reader. Select that role, and then select Next.
In the Members tab, specify the identity who should be assigned this role, and then select Next.
In the Conditions tab, select Add condition.
Ensure Visual is selected for Editor type.

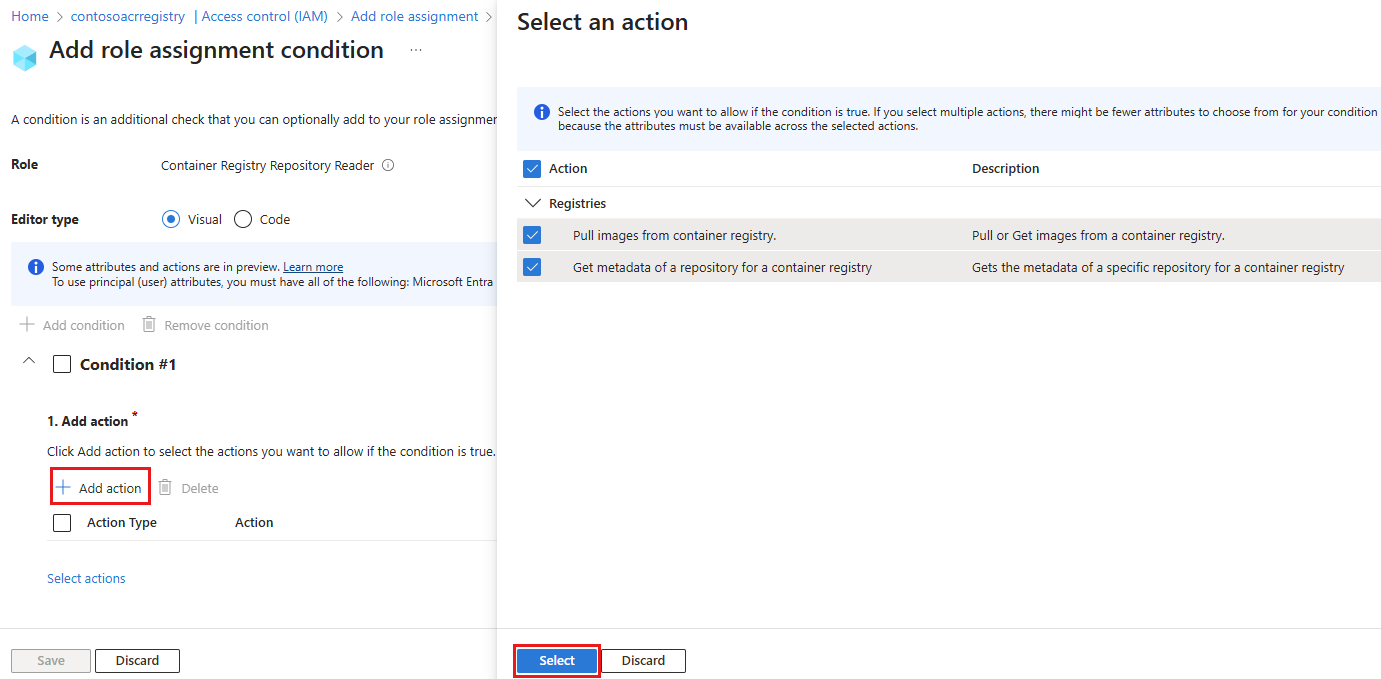

Under Condition #1, select the actions (permissions) belonging to this role that you want to grant in this repository-scoped role assignment. In most cases, select all actions to limit all actions performed by identities with this role to the repository scope. Choose Select to save your changes.

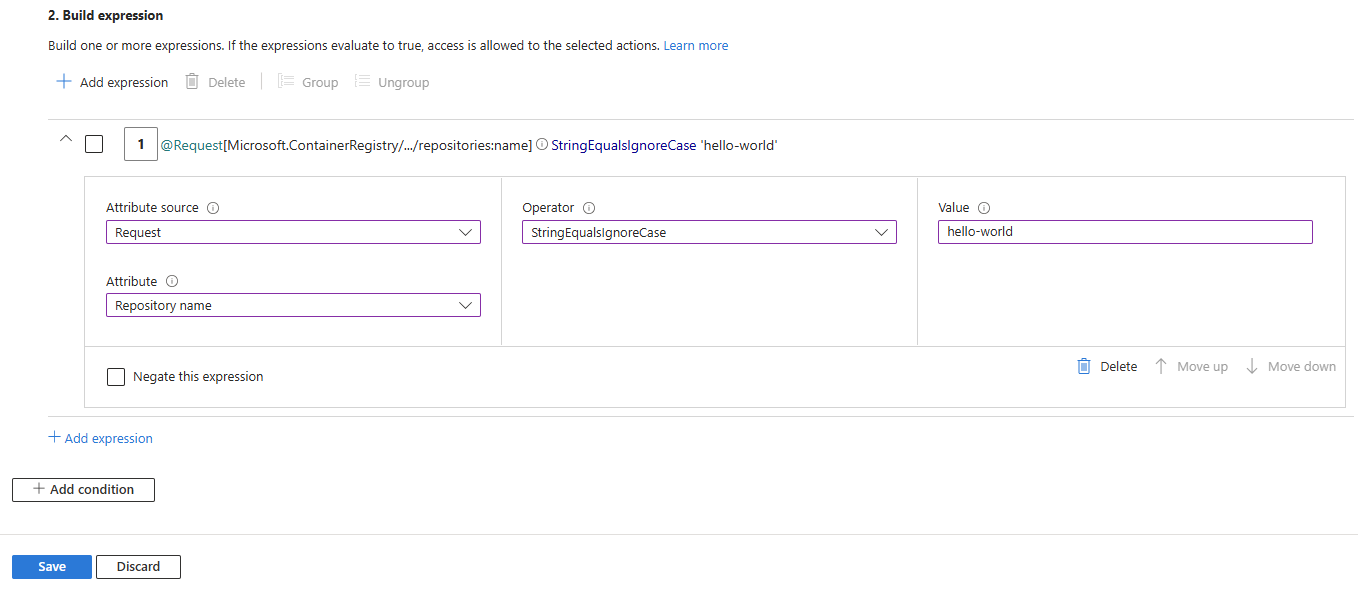

Next, under Build expression, select Add expression. Configure the following options for the expression to scope the ABAC condition to a specific repository:
- Attribute source: Request
- Attribute: Repository name
- Operator: StringEqualsIgnoreCase
- Value: <repository-name> - the full name of the repository

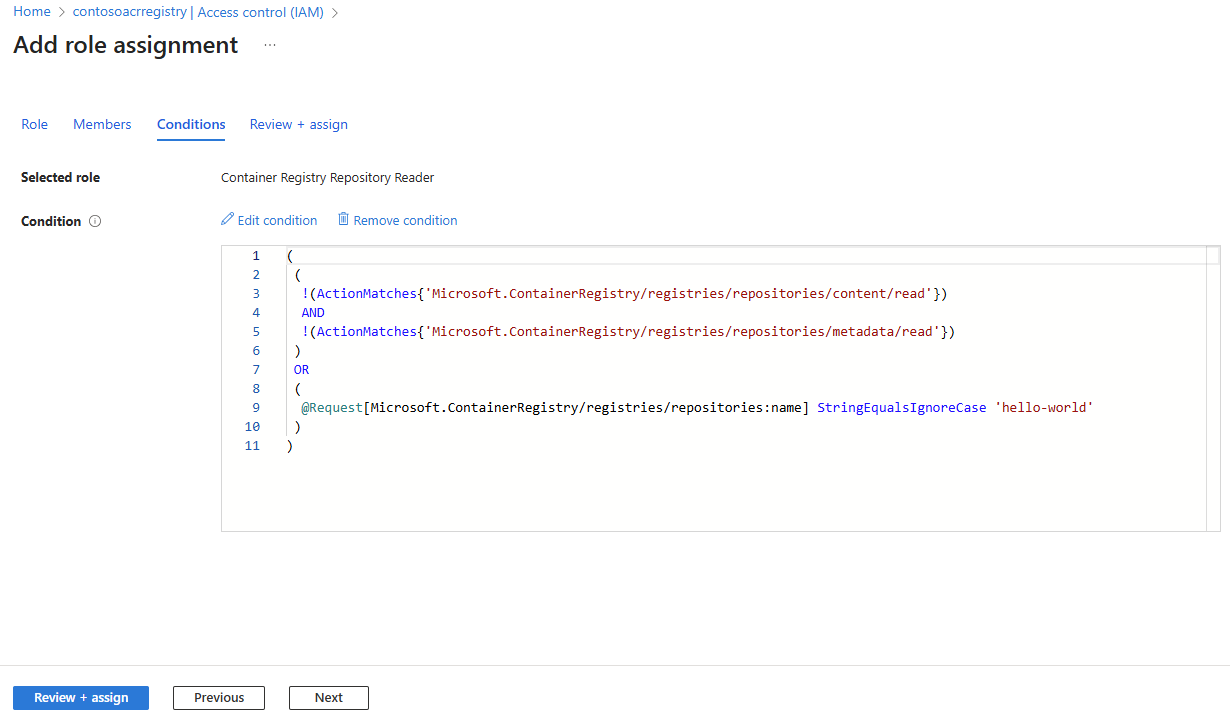

Select Save to save the ABAC condition, and then review the code expression of the ABAC condition. You can use this code to perform the same role assignment with the same ABAC condition by using the Azure CLI.
Select Review + assign to finalize the role assignment.

After you create the role assignment, you can view, edit, or delete it in the Access control (IAM) page for your registry by selecting Role assignments.

To add a role assignment with an ABAC condition scoped to a specific repository, use az role assignment create. This command includes the following parameters related to ABAC conditions:

Parameter	Type	Description
`role`	String	The name or ID of the role to assign, such as `Container Registry Repository Reader`.
`scope`	String	The full resource ID of the registry. Use the registry resource ID (without the repository name), even for role assignments scoped to a specific repository, with the format `/subscriptions/{subscription-id}/resourceGroups/{resource-group-name}/providers/Microsoft.ContainerRegistry/registries/{registry-name}`. You can also specify the resource group or subscription scope to perform this role assignment across all registries in the resource group or subscription.
`assignee`	String	The email address or object ID of the identity to assign the role to. For example, specify `user@contoso.com` for a user assignee. You can also specify the object ID of the identity.
`assignee-object-id`	String	Use this parameter instead of `--assignee` to bypass Graph API invocation if there's insufficient privileges. This parameter only works with object IDs for users, groups, service principals, and managed identities. For managed identities, use the principal ID. For service principals, use the object ID and not the application ID.
`description`	String	A description for the role assignment to help identify the purpose of the role assignment. This parameter is optional.
`condition`	String	A code expression which defines the ABAC condition for the role assignment.
`condition-version`	String	Version of the condition syntax. If `--condition` is specified without `--condition-version`, the version is set to the default value of `2.0`.

To create the expression for the ABAC condition, we recommend using the visual editor in the Azure portal role assignment experience. For this example, use the following expression for the ABAC condition to restrict the role assignment to the repository hello-world:

(
 (
  !(ActionMatches{'Microsoft.ContainerRegistry/registries/repositories/content/read'})
  AND
  !(ActionMatches{'Microsoft.ContainerRegistry/registries/repositories/metadata/read'})
 )
 OR
 (
  @Request[Microsoft.ContainerRegistry/registries/repositories:name] StringEqualsIgnoreCase 'hello-world'
 )
)

You can store this ABAC condition into a shell variable named condition for use in the az role assignment create command:

condition=$(cat <<'EOF' | tr -d '\n'
(
 (
  !(ActionMatches{'Microsoft.ContainerRegistry/registries/repositories/content/read'})
  AND
  !(ActionMatches{'Microsoft.ContainerRegistry/registries/repositories/metadata/read'})
 )
 OR
 (
  @Request[Microsoft.ContainerRegistry/registries/repositories:name] StringEqualsIgnoreCase 'hello-world'
 )
)
EOF
)

Inspect the condition variable carefully to verify that it's correct. Be sure to use double quotes (") whenever you use the condition variable.

echo "$condition"

Before performing the role assignment, query the registry resource ID for the --scope parameter. Always use the registry resource ID (without the repository name) for the --scope parameter, even for role assignments scoped to a specific repository. You can also specify the resource group or subscription scope to perform this role assignment across all registries in the resource group or subscription.

scope=$(az acr show --name <registry-name> --resource-group <resource-group> --query "id" -o tsv)

Finally, run the following command to perform the role assignment:

az role assignment create \
  --role "Container Registry Repository Reader" \
  --scope "$scope" \
  --assignee "user@contoso.com" \
  --description "Read access to a specific repository" \
  --condition "$condition" \
  --condition-version "2.0"

The following shows an example of the output:

{
    "canDelegate": null,
    "condition": "( (  !(ActionMatches{'Microsoft.ContainerRegistry/registries/repositories/content/read'})  AND  !(ActionMatches{'Microsoft.ContainerRegistry/registries/repositories/metadata/read'}) ) OR  (  @Request[Microsoft.ContainerRegistry/registries/repositories:name] StringEqualsIgnoreCase 'hello-world' ))",
    "conditionVersion": "2.0",
    "description": "{description}",
    "id": "/subscriptions/{subscriptionId}/resourceGroups/{resourceGroup}/providers/Microsoft.Authorization/roleAssignments/{roleAssignmentId}",
    "name": "{roleAssignmentId}",
    "principalId": "{userObjectId}",
    "principalType": "User",
    "resourceGroup": "{resourceGroup}",
    "roleDefinitionId": "/subscriptions/{subscriptionId}/providers/Microsoft.Authorization/roleDefinitions/{roleDefinitionId}",
    "scope": "/subscriptions/{subscriptionId}/resourceGroups/{resourceGroup}/providers/Microsoft.ContainerRegistry/registries/{registryName}",
    "type": "Microsoft.Authorization/roleAssignments"
}

To update or delete the role assignment, use az role assignment update or az role assignment delete.

Scope role assignment to multiple repositories using repository prefix (wildcard)

In this example, you assign the Container Registry Repository Reader role to grant pull permissions to multiple repositories with a common prefix (wildcard). By adding ABAC conditions, this role assignment lets the identity pull images, view tags, and read metadata only from the repositories with a common prefix, while preventing access to other repositories in the registry.

Azure portal
Azure CLI

If you followed the previous example to assign the Container Registry Repository Reader role to a specific repository, delete that role assignment before you create a new one. You can delete the assignment in Access control (IAM) by selecting Role assignments, selecting the role assignment, and then selecting Delete.

Follow the same steps as in the previous example to perform a role assignment with ABAC conditions.
In the step to add an expression for the ABAC condition, configure an expression for an ABAC condition to scope the role assignment to multiple repositories with a common prefix (wildcard). Configure the following options:
- Attribute source: Request
- Attribute: Repository name
- Operator: StringStartsWithIgnoreCase
- Value: <repository-prefix> - the prefix of the repositories, including the trailing slash /. For example, to grant permissions to all repositories with the prefix backend/, such as backend/nginx and backend/redis, enter backend/. To grant permissions to all repositories with the prefix frontend/js/, such as frontend/js/react and frontend/js/vue, enter frontend/js/.

  Important

  The trailing slash / is required in the Value field for the expression of the ABAC condition. If you don't include the trailing slash /, you might unintentionally grant permissions to other repositories that don't match the prefix. For example, if you enter backend without the trailing slash /, the role assignment grants permissions to all repositories with the prefix backend, such as backend/nginx, backend/redis, backend-infra/k8s, backend-backup/store, backend, and backendsvc/containers.
Select Save to save the ABAC condition, then review the code expression of the ABAC condition.
Select Review + assign to finalize the role assignment.

If you followed the previous example to assign the Container Registry Repository Reader role to a specific repository, delete that role assignment (by using az role assignment delete) before creating a new one with an ABAC condition scoped to a repository prefix.

To add a role assignment with an ABAC condition scoped to multiple repositories under a prefix, use az role assignment create.

(
 (
  !(ActionMatches{'Microsoft.ContainerRegistry/registries/repositories/content/read'})
  AND
  !(ActionMatches{'Microsoft.ContainerRegistry/registries/repositories/metadata/read'})
 )
 OR
 (
  @Request[Microsoft.ContainerRegistry/registries/repositories:name] StringStartsWithIgnoreCase 'backend/'
 )
)

Follow the steps described in the first section to store this ABAC condition into a shell variable named condition and query the registry resource ID for the --scope parameter. Then perform the role assignment by running the following command:

az role assignment create \
  --role "Container Registry Repository Reader" \
  --scope "$scope" \
  --assignee "user@contoso.com" \
  --description "Read access to a multiple repositories under a repository prefix" \
  --condition "$condition" \
  --condition-version "2.0"

The following shows an example of the output:

{
    "canDelegate": null,
    "condition": "( (  !(ActionMatches{'Microsoft.ContainerRegistry/registries/repositories/content/read'})  AND  !(ActionMatches{'Microsoft.ContainerRegistry/registries/repositories/metadata/read'}) ) OR  (  @Request[Microsoft.ContainerRegistry/registries/repositories:name] StringStartsWithIgnoreCase 'backend/' ))",
    "conditionVersion": "2.0",
    "description": "{description}",
    "id": "/subscriptions/{subscriptionId}/resourceGroups/{resourceGroup}/providers/Microsoft.Authorization/roleAssignments/{roleAssignmentId}",
    "name": "{roleAssignmentId}",
    "principalId": "{userObjectId}",
    "principalType": "User",
    "resourceGroup": "{resourceGroup}",
    "roleDefinitionId": "/subscriptions/{subscriptionId}/providers/Microsoft.Authorization/roleDefinitions/{roleDefinitionId}",
    "scope": "/subscriptions/{subscriptionId}/resourceGroups/{resourceGroup}/providers/Microsoft.ContainerRegistry/registries/{registryName}",
    "type": "Microsoft.Authorization/roleAssignments"
}

Scope role assignment to multiple repositories using multiple repository prefixes (multiple wildcards)

In this example, you assign the Container Registry Repository Reader role to grant pull permissions to multiple repositories under two different prefixes (multiple wildcards). By adding ABAC conditions, this role assignment lets the identity pull images, view tags, and read metadata only from the specified repositories, preventing access to other repositories in the registry.

Azure portal
Azure CLI

If you followed the previous example to assign the Container Registry Repository Reader role to a specific repository prefix, delete that role assignment before you create a new one. You can delete the assignment in Access control (IAM) by selecting Role assignments, selecting the role assignment, and then selecting Delete.

Follow the same steps as in the first example to perform a role assignment with ABAC conditions.

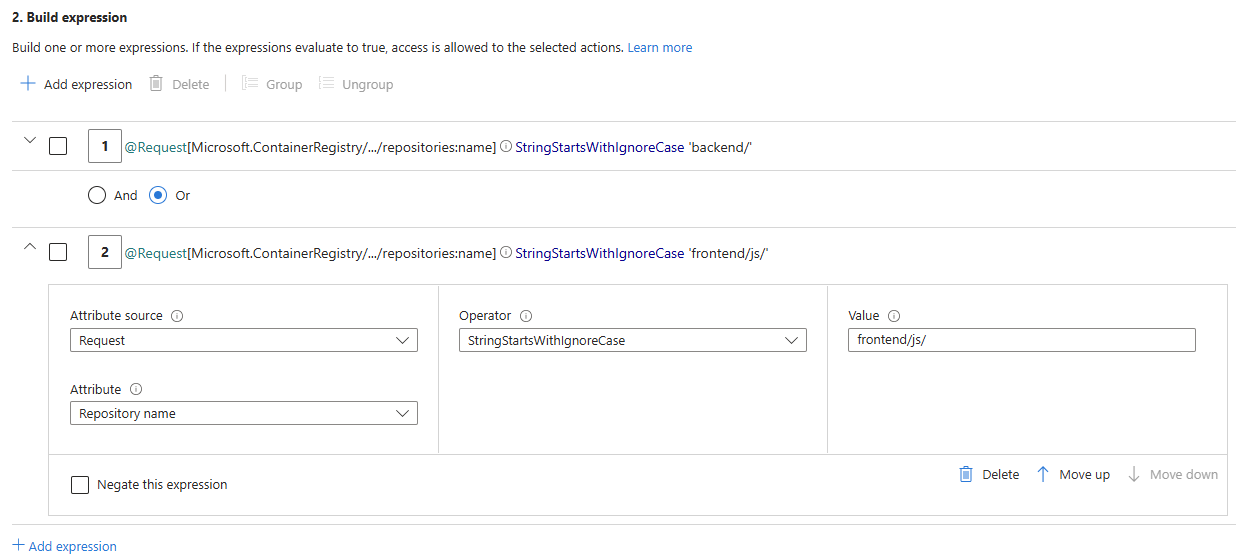

In the step to add an expression for the ABAC condition, configure two expressions to scope the role assignment to multiple repositories under two prefixes: backend/ and frontend/js/ (multiple wildcards). Include the trailing slash / in each prefix.

For the first expression, configure the following options:
- Attribute source: Request
- Attribute: Repository name
- Operator: StringStartsWithIgnoreCase
- Value: backend/
Select Add expression. The visual editor also supports multiple boolean operators including And, Or, hierarchical grouping, and negation. For this example, ensure that the boolean operator is set to Or.
For the second expression, configure the following options:
- Attribute source: Request
- Attribute: Repository name
- Operator: StringStartsWithIgnoreCase
- Value: frontend/js/
Select Save to save the ABAC condition, then review the code expression of the ABAC condition.
Select Review + assign to finalize the role assignment.

If you followed the previous example to assign the Container Registry Repository Reader role to a specific repository prefix, delete that role assignment (by using az role assignment delete) before creating a new one with an ABAC condition scoped to a repository prefix.

To add a role assignment with an ABAC condition scoped to multiple repositories under a prefix, use az role assignment create.

(
 (
  !(ActionMatches{'Microsoft.ContainerRegistry/registries/repositories/content/read'})
  AND
  !(ActionMatches{'Microsoft.ContainerRegistry/registries/repositories/metadata/read'})
 )
 OR
 (
  @Request[Microsoft.ContainerRegistry/registries/repositories:name] StringStartsWithIgnoreCase 'backend/'
  OR
  @Request[Microsoft.ContainerRegistry/registries/repositories:name] StringStartsWithIgnoreCase 'frontend/js/'
 )
)

az role assignment create \
  --role "Container Registry Repository Reader" \
  --scope "$scope" \
  --assignee "user@contoso.com" \
  --description "Read access to a multiple repositories under multiple repository prefixes" \
  --condition "$condition" \
  --condition-version "2.0"

The following shows an example of the output:

{
    "canDelegate": null,
    "condition": "( (  !(ActionMatches{'Microsoft.ContainerRegistry/registries/repositories/content/read'})  AND  !(ActionMatches{'Microsoft.ContainerRegistry/registries/repositories/metadata/read'}) ) OR  (  @Request[Microsoft.ContainerRegistry/registries/repositories:name] StringStartsWithIgnoreCase 'backend/' ))",
    "conditionVersion": "2.0",
    "description": "{description}",
    "id": "/subscriptions/{subscriptionId}/resourceGroups/{resourceGroup}/providers/Microsoft.Authorization/roleAssignments/{roleAssignmentId}",
    "name": "{roleAssignmentId}",
    "principalId": "{userObjectId}",
    "principalType": "User",
    "resourceGroup": "{resourceGroup}",
    "roleDefinitionId": "/subscriptions/{subscriptionId}/providers/Microsoft.Authorization/roleDefinitions/{roleDefinitionId}",
    "scope": "/subscriptions/{subscriptionId}/resourceGroups/{resourceGroup}/providers/Microsoft.ContainerRegistry/registries/{registryName}",
    "type": "Microsoft.Authorization/roleAssignments"
}

Effects of enabling ABAC on ACR Tasks, Quick Tasks, Quick Builds, and Quick Runs

When you enable Azure ABAC for repository permissions in your container registry by setting the Role assignment permissions mode to RBAC Registry + ABAC Repository Permissions, new and existing ACR Tasks, as well as Quick Tasks, Quick Builds, and Quick Runs, are affected. Review the following sections to understand these effects and how to grant data plane access for these tasks in ABAC-enabled source registries.

Effect on ACR Tasks

When you configure a registry with "RBAC Registry + ABAC Repository Permissions", new and existing ACR Tasks no longer have default data plane access to the source registry, including its images and artifacts within repositories.

You must explicitly attach and set an identity for new and existing ACR Tasks to use for authentication to an ABAC-enabled source registry. Then, grant the attached identity the appropriate ACR built-in role to enable authentication and access to registry repositories.

Attach an identity to a new ACR Task for source registry access

For ABAC-enabled source registries, use az acr task create with the --source-acr-auth-id flag to specify the identity the Task uses to authenticate to the source registry.

You can specify one of the following options for the --source-acr-auth-id flag:

--source-acr-auth-id [system] – Attaches a system-assigned managed identity.
--source-acr-auth-id $resourceId – Attaches a user-assigned managed identity by using its resource ID.

Once you attach the identity, assign it an ACR built-in role (optionally with ABAC conditions) to grant appropriate permissions.

Update an existing ACR Task to use an identity for source registry access

For ABAC-enabled source registries, use az acr task update with the same --source-acr-auth-id options to assign or change the identity the Task uses to authenticate to the source registry. As with new Tasks, follow up with the appropriate role assignment.

Remove source registry access from an ACR Task

To explicitly prevent an ACR Task from authenticating by using an ABAC-enabled source registry and block the Task's permissions to the source registry, set --source-acr-auth-id none. This action disables the task's ability to perform any operations on the source registry and content within it.

Note

Note: The --auth-mode flag is deprecated for ABAC-enabled registries and is no longer supported for controlling ACR Task access.

Effect on Quick Tasks, Quick Builds, and Quick Runs

When you configure a registry with "RBAC Registry + ABAC Repository Permissions", new Quick Tasks such as Quick Builds and Quick Runs no longer have default data plane access to the source registry, including its images and artifacts within repositories. For Quick Tasks, you must use the caller's identity to authenticate the Quick Task to the source registry. The caller's identity must have the appropriate ACR built-in role to enable authentication and access to registry repositories.

Run a Quick Task with the caller identity for source registry access

For ABAC-enabled source registries, use az acr build or az acr run with the --source-acr-auth-id [caller] option to specify the caller's identity as the identity the Quick Task uses to authenticate to the source registry. Before running the Quick Task, ensure that the caller's identity has the appropriate ACR built-in role to enable authentication and access to the source registry and its repositories.

Run a Quick Task without source registry access

To run a Quick Task without any source registry access, use az acr build or az acr run with the --source-acr-auth-id none option. This setting disables the Quick Task's ability to perform any operations on the source registry and content within it.

For an overview of built-in roles, see Azure Container Registry permissions and role assignments overview.
For a detailed reference of every ACR built-in role, including the permissions granted by each role, see the Azure Container Registry roles directory reference.
For information on creating custom roles that meet your specific needs and requirements, see Azure Container Registry custom roles.

Feedback

Was this page helpful?

Last updated on 2025-12-11

Share via

Azure attribute-based access control (Azure ABAC) repository permissions in Azure Container Registry

Configure role assignment permissions mode setting

Effect on existing role assignments

Effect on ACR Tasks, Quick Tasks, Quick Builds, and Quick Runs

Create a registry with ABAC enabled

Update an existing registry to enable ABAC

Configure Azure ABAC repository permissions

ABAC-enabled built-in roles

Scope role assignment to a specific repository

Scope role assignment to multiple repositories using repository prefix (wildcard)

Scope role assignment to multiple repositories using multiple repository prefixes (multiple wildcards)

Effects of enabling ABAC on ACR Tasks, Quick Tasks, Quick Builds, and Quick Runs

Effect on ACR Tasks

Attach an identity to a new ACR Task for source registry access

Update an existing ACR Task to use an identity for source registry access

Remove source registry access from an ACR Task

Effect on Quick Tasks, Quick Builds, and Quick Runs

Run a Quick Task with the caller identity for source registry access

Run a Quick Task without source registry access

Related content

Feedback

Additional resources
