Dbghelp API fails to find symbol files in downstream store

Hello @RLWA32 ,

My suspicion would be that the Visual Studio debugger is managing the symbol cache itself (and not using Dbghelp routines like SymFindFileInPath), but I don't have Visual Studio installed (so I can't verify that).

You could still benefit from trying the "windbg" test - you might then see that, afterwards, your test application could find and verify the presence of the kernel32 symbols.

Knowing the simple directory structure and naming conventions used in the symbol cache, you could just jettison use of Dbghelp and construct the file paths manually, accommodating factors such as "stripped" sub-directories.

BTW: what are the contents of the "origin.txt" file in the "stripped" directory?

Gary

@Gary Nebbett The original.txt file just contains the value of the _NT_SYMBOL_PATH environment variable -- srv*F:\Symbols*https://msdl.microsoft.com/download/symbols I had hoped to avoid writing implementation dependent code by using one documented API function. It worked in the past so unless my code is bad something has changed on Microsoft's side of things.

Hello @RLWA32 ,

My recommendation (and what I do), if your symbol cache just contains Microsoft symbols, is just to delete everything.

Here is a directory listing, sorted by date, of my ntdll symbols:

 Directory of C:\Windows\Symbols\ntdll.pdb

03/09/2025  17:00    <DIR>          21EB609F5CD42F738B9AD508893634BD1
15/09/2025  10:21    <DIR>          DAD4BF763E723284BC97F7DB68FA41781
12/10/2025  18:13    <DIR>          3D25C9880F065F55B402EE8376F300E81
15/10/2025  11:10    <DIR>          3DF97D250AD59D01BC65E275570F19041
30/10/2025  20:49    <DIR>          52E797D9694BBE7D8F3819BB7A7C075B1
10/12/2025  12:34    <DIR>          E010FE8BE35C4C961B7E7658B5BCAE9D1
14/01/2026  10:20    <DIR>          08A413EE85E91D0377BA33DC3A2641941
30/01/2026  22:17    <DIR>          3DE7E8F4BDA1BF7181DE9D18EB5676AB1
11/02/2026  08:47    <DIR>          2CF5F86ACB68735923D72913BBD9B0E31
25/02/2026  20:32    <DIR>          .
25/02/2026  20:32    <DIR>          5A9F4004DB806B50BCBD7B6C55417B041
20/03/2026  13:44    <DIR>          ..
               0 File(s)              0 bytes
              12 Dir(s)  58,093,019,136 bytes free

About every two weeks ("Patch Tuesdays" and "Preview Update" days), changes are normally made to the heavily used binaries and new symbols are needed anyway.

Gary

@Gary Nebbett

My recommendation (and what I do), if your symbol cache just contains Microsoft symbols, is just to delete everything.

Yes, the nuclear option is always available.

About every two weeks ("Patch Tuesdays" and "Preview Update" days), changes are normally made to the heavily used binaries and new symbols are needed anyway.

I don't install previews so the update cycle is not as frequent for me.

Thanks again for your comments.

Meanwhile, for a limited period, the function could be helped to search in stripped folder as well. Something like this:

WCHAR wszGuid[39];
int n = StringFromGUID2( pInfo->guid, wszGuid, 39 );
std::string g( wszGuid, wszGuid + n - 1 );
g.erase( std::remove_if( g.begin( ), g.end( ), []( char c ) { return c == '{' || c == '}' || c == '-'; } ), g.end( ) );

std::string sp = std::string( "F:\\Symbols;F:\\Symbols\\" ) + pInfo->name + '\\' + g + std::to_string( pInfo->age ) + "\\stripped";

if( SymFindFileInPath( h, sp.c_str( ), pInfo->name, &pInfo->guid, pInfo->age, 0, SSRVOPT_GUIDPTR, szFound, ComparePDBInfo, pInfo ) )
	printf_s( "SymFindFileInPath found %s\n", szFound );
else
	printf_s( "SymFindFileInPath for %s failed with %u\n", pInfo->name, GetLastError( ) );

Hello All,

I “bit the bullet” and installed the community version of Visual Studio :-)

The symbol file management within Visual Studio shares concepts, but not common binary code, with Dbghelp. Here is one stack trace (more are available, upon request) that captures a moment in the process of Visual Studio debug symbol file management:

%1 %2 %3 %4 %5 %6 %7
1 Irp = 0xFFFFD9092B48B0F8 (TDH_INTYPE_POINTER, TDH_OUTTYPE_HEXINT64, 0, 8, 1, )
2 FileObject = 0xFFFFD90931CB07F0 (TDH_INTYPE_POINTER, TDH_OUTTYPE_HEXINT64, 0, 8, 1, )
3 IssuingThreadId = 6404 (TDH_INTYPE_UINT32, TDH_OUTTYPE_UNSIGNEDINT, 0, 4, 1, )
4 CreateOptions = 0x5000060 (TDH_INTYPE_UINT32, TDH_OUTTYPE_HEXINT32, 0, 4, 1, )
5 CreateAttributes = 0x80 (TDH_INTYPE_UINT32, TDH_OUTTYPE_HEXINT32, 0, 4, 1, )
6 ShareAccess = 0x0 (TDH_INTYPE_UINT32, TDH_OUTTYPE_HEXINT32, 0, 4, 1, )
7 FileName = \Device\HarddiskVolume1\Users\Gary\AppData\Local\Temp\SymbolCache\oleaut32.pdb\87091c6a28419368378aae5938a2b2d61\stripped\origin.txt (TDH_INTYPE_UNICODESTRING, TDH_OUTTYPE_STRING, 0, 0, 1, )
Child-SP          RetAddr               Call Site
000000dd`46e3eb30 00007ff9`eecdb5c7     symbollocator!SymbolLocatorLib::CSymbolLocator::WriteOriginFile+0xc3
000000dd`46e3ee60 00007ff9`eecdd9dd     symbollocator!SymbolLocatorLib::CSymbolLocator::LocateSymbolFile+0xff3
000000dd`46e3f360 00000294`69b35853     symbollocator!SymbolLocatorLib::CSymbolLocator::LocateAnyFormatPdbWithChecksums+0xfd
000000dd`46e3f480 00000294`69b069c9     vsdebugeng_impl!SymProvider::CSymbolLocator::LocateAnyFormatPdbWithChecksums+0xe3
000000dd`46e3f530 00000294`69b058ed     vsdebugeng_impl!SymProvider::CDiaLoader::LoadPDB+0x675
000000dd`46e3f6f0 00000294`69b04203     vsdebugeng_impl!SymProvider::CDiaLoader::ReloadSymbols+0x43d
000000dd`46e3f890 00007ff9`83f99dbb     vsdebugeng_impl!SymProvider::CDiaLoader::TryLoadSymbols+0x83
000000dd`46e3f8e0 00000294`69bba30d     vsdebugeng!dispatcher::DkmModuleInstance::TryLoadSymbols+0x93
000000dd`46e3f980 00007ff9`f5860cd3     vsdebugeng_impl!ad7::CALModule::LoadSymbolsThreadPool+0x4d
000000dd`46e3f9b0 00007ff9`f583d79a     ntdll!RtlpTpWorkCallback+0x173
000000dd`46e3fa90 00007ff9`f3957374     ntdll!TppWorkerThread+0x68a
000000dd`46e3fd90 00007ff9`f583cc91     KERNEL32!BaseThreadInitThunk+0x14
000000dd`46e3fdc0 00000000`00000000     ntdll!RtlUserThreadStart+0x21

The paths to symallocator and vsdebugeng_impl are “\Program Files\Microsoft Visual Studio\18\Community\Common7\Packages\Debugger\symbollocator.dll” and “\Program Files\Microsoft Visual Studio\18\Community\Common7\Packages\Debugger\vsdebugeng.impl.dll" – quite separate from dbghelp.dll (where SymFindFileInPath lives).

Personally, I would not follow Viorel’s proposal – that looks like it is working around a bug in SymFindFileInPath, which gives the wrong impression. Providing the “calculated” path to the symbol file in the “SearchPath” parameter and getting the same path back (plus filename) via the “FoundFile” parameter is not helpful and a waste of (execution) time.

I am fairly sure that there is no documented method of achieving your goal; practical approaches include deleting everything, enabling “Last Access” updating (I thought that that was the default) and trusting in agestore, or using your undoubted knowledge of the internal symbol file hierarchy structure (GUIDs and Ages) and constructing paths manually.

Gary

Gary & Viorel,

Thanks to both for your comments and observations.

Perhaps when @Taki Ly (WICLOUD CORPORATION) revisits this issue we will get some feedback on Microsoft's view of the Dbghelp API and related sysmsrv.dll failures with respect to symbol file paths.

@Gary Nebbett Your observations about the VS debugger prompted me to reconsider earlier suggestions about testing with windbg. They were right on target. I used it to debug some applications and it downloaded symbols to the expected locations in the local store. It also showed the expected paths when examining loaded modules.

After windbg usage I checked the local store. It contained two identical copies of the symbol files. One in the "stripped" subfolder created by the VS debugger and the other in the expected location.

To add insult to injury, the VS debugger now loaded the symbol files downloaded by the windbg session!

I didn't see any setting in the VS debugging options with respect to this extremely annoying behavior.

Update:

I deleted the symbol file downloaded during the windbg session and manually created the "file.ptr" file containing the fully qualified path to the symbol file in the "stripped" subfolder created by the VS debugger.

Upon starting a new session with windbg.exe it was able to find and load the symbol file in the "stripped" subfolder. Also, the SymFindFileInPath function now correctly located the VS debugger symbol file.

Hello @RLWA32 ,

I guess that you have been reading "Symbol Storage Format".

I asked earlier "How were you planning to perform the correlation" and you replied "Enumerate the binaries and find matching symbol files" - that was not the answer that I expected.

Consider this perspective: the cache possibly contains lots of "never to be used/viewed again" files and "unintended" "damage" to the cache can be "fixed" by causing the symbol files to be downloaded again; the structure of the cache is easily inferable and can differ slightly between tools (e.g. WinDbg, Visual Studio, Windows Performance Analyzer); there is no API for symbol cache management.

Your needs would seem to be best served by traversing the symbol cache, searching just a few known locations (e.g. %SystemRoot%\System32) for matching executable names and then checking the CodeView GUID/age match; if there is no match then delete the cache entry. You could even refine this clean-up process to remove "duplicate" .pdb files and create file.ptr entries.

If you "Enumerate the binaries", then it would make sense to check a wide variety of locations, such as "\Program Files (x86)\Microsoft\Edge\Application" - a single msedge.dll.pdb file is almost a gigabyte in size (you probably don't want to collect too many of them).

Gary

Update: some additional considerations.

• If you use old .dmp or .etl files or receive copies of those files from other systems, then old .pdb files might still be useful.
• Some old .pdb files contain valuable information (see the "Anti-Trust Settlement Forensics" section of https://www.geoffchappell.com/studies/windows/km/ntoskrnl/source/inc/ntmmapi.htm)

@Gary Nebbett Since I had not experienced this problem in the past when I was experimenting with symbol files I went back and tested using VS2019. The VS2019 debugger downloaded symbol files to their expected location in the local store. So apparently a change made for VS2022 is the culprit. I haven't installed VS2026 so I don't know how its debugger behaves.

I'd rather not have to tweak the content of the local store so that symbols downloaded by VS2022 are accessible to windbg and the dbghelp API. After all, any solution that is implemented will need wash, rinse and repeat every time new symbols are downloaded by the VS debugger.

IMHO, the best solution is for VS2022 (and maybe VS2026) to create the correct file.ptr file at the time it downloads from the Microsoft symbol server when it saves symbol files to a "non-standard" folder in the local store.

The breadth and depth of Geoff Chappell's knowledge was amazing. I was saddened to read of his passing.

Hello @RLWA32 ,

I thought about saying a few words about Geoff Chappell - I am glad that you actually did.

Gary

Hello @RLWA32 ,

I’ve tried reproducing your issue on Visual Studio 2026 and I’m seeing the same problem. I’m currently following up and asking for confirmation. Once I have results, I’ll get back to you as soon as possible.

Thank you.

@Taki Ly (WICLOUD CORPORATION) Thank you for your follow-up. The status of the issue that I posted to the developer community site has been changed to Triaged. As I indicated in the comments that I added to that posting there is no logical reason why the Visual Studio debugger and the SDK debugging tools cannot share a single instance of symbol files downloaded to the local store.

I look forward to receiving some feedback from Microsoft on this issue.

Hello @RLWA32 ,

There is a small change that you could make to your configuration that might assuage the issue; the change involves the path component "MicrosoftPublicSymbols". I can't find any definitive documentation for this path component, but it is mentioned here; regarding the pedigree of the linked file, John Robbins (of Wintellect) is credited in the PowerShell code and it appears in a GitHub repository of Chris Patterson (Microsoft). Its name references VS2010 but the path component is still used in VS2026.

For test purposes, I left the VS2026 "Cache symbols in this directory" setting with its default value (%APPDATA%\Temp\SymbolCache) and then added a symbolic link named MicrosoftPublicSymbols (referencing my _NT_SYMBOL_PATH cache directory) to that directory:

 Directory of C:\Users\Gary\AppData\Local\Temp\SymbolCache

25/03/2026  21:43    <DIR>          .
25/03/2026  21:43    <DIR>          ..
25/03/2026  21:43    <SYMLINK>      MicrosoftPublicSymbols [C:\Symbols]

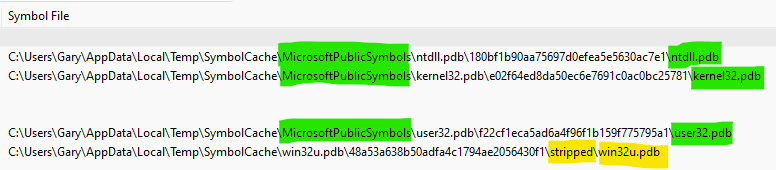

I then deliberately removed the win32u.pdb directory from my _NT_SYMBOL_PATH cache directory and started debugging with Visual Studio. The modules window showed the following:

Visual Studio uses symsrv.dll to download the symbol files and an ETW trace shows that win32u.pdb is actually downloaded to the _NT_SYMBOL_PATH cache (if not already present) and then moved to the Visual Studio cache - denuding the NT_SYMBOL_PATH cache of that symbol file.

You seem to have set the Visual Studio cache to be the same path as the _NT_SYMBOL_PATH cache; my instinct now is to keep the two caches separate but linked via MicrosoftPublicSymbols.

Gary

@Gary Nebbett As I understand it the MicrosoftPublicSymbols symlink workaround will result in symbol files being stored in either the expected location in the local store or in a stripped subfolder of a separate VS2022 cache depending on which debugger did the downloading from the MS public symbol server.

However, regardless of their location, all of the symbol files will be available to the VS2022 debugger and the SDK debuggers. Presumably, the SymFindFileInPath API function would also find all of the files.

Is my understanding correct?

Hello @RLWA32,

My testing results do not coincide with your understanding - I probably rushed my post and was over-enthusiastic about the benefits.

The "out of the box" experience on a system where _NT_SYMBOL_PATH is defined is poor: SDK debuggers are unaware of the VS cache of symbol files (in %TEMP%\SymbolCache) and the VS debugger "steals" (moves) symbol files from the SDK cache.

Updating the VS configuration so that the VS cache matches the SDK cache seems to have a similar effect to adding the MicrosoftPublicSymbols symbolic link: the VS debugger can use existing (cached) symbol files from both environments (VS and SDK) but if it downloads and caches new symbol files then these new files are not visible to SDK debuggers (i.e. not visible to DbgHelp APIs such as SymFindFileInPath).

Gary
