how to stretch text in a fixed textbox in ms access report?

Anonymous
2025-01-15T05:48:41+00:00

how to stretch text in a fixed textbox in ms access report?

i want to show variables text length in a fixed textbox's width without changing the font size.

Microsoft 365 and Office | Access | For education | Other

Locked Question. This question was migrated from the Microsoft Support Community. You can vote on whether it's helpful, but you can't add comments or replies or follow the question.

0 comments No comments
{count} votes

3 answers

Sort by: Most helpful
  1. George Hepworth 22,220 Reputation points Volunteer Moderator
    2025-01-15T12:41:53+00:00

    You can center the text, of course, but Access reports don't natively support stretching text out to fit a text box control.

    • Can you provide a screenshot of the report showing how much space you have to fill in this control and how much text is actually in it?
    • Also, what problem are you trying to solve by doing this?

    It's probably possible to insert spaces between the letters in a given string of text in the control,using the Space function. However, that would require a VBA function that runs on every field in every record where you want to achieve this. It's doable, but might be pretty slow.

    0 comments No comments
  2. Duane Hookom 26,555 Reputation points Volunteer Moderator
    2025-01-15T14:47:42+00:00

    I expect you could do this with multiple text boxes based on the number of length of the text. For instance, if the longest value was 16 characters, use 16 text boxes. Fill each text box from left to right and then use code to set their Left property to spread them evenly in your space.

    The other solution is to use Me.Print in the On Format event of the section. Determine the length and use a loop to print individual characters adjusting the CurrentX property. In this scenario, the original text box would not show.

    0 comments No comments
  3. Duane Hookom 26,555 Reputation points Volunteer Moderator
    2025-01-15T17:36:10+00:00

    Assuming a text box [txtUserName] on a report with a rectangle [boxUserName] that you want to fill with the letters from txtUserName. The code in the On Format event would be:

    Private Sub Detail_Format(Cancel As Integer, FormatCount As Integer)

        Dim intChar As Integer       'current character in string

        Dim intChars As Integer      'number of total characters

        Dim intTotalWidth As Integer 'width of rectangle to fill

        Dim intCharWidth As Integer  'character spacing

        Dim strUserName As String    'text value to spread

        intChars = Len(Me.txtUserName)

        intTotalWidth = Me.boxUserName.Width

        intCharWidth = intTotalWidth / intChars

        strUserName = Me.txtUserName

        Me.CurrentY = Me.boxUserName.Top

        For intChar = 1 To intChars

            Me.CurrentY = Me.boxUserName.Top

            Me.CurrentX = Me.boxUserName.Left + intCharWidth * (intChar - 1) + intCharWidth / 2

            Me.Print Mid(strUserName, intChar, 1)

        Next

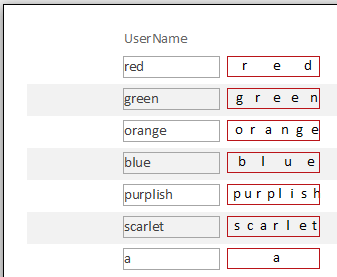

    End Sub The results would look like:

    The boxUserName has the red outline. You may need to do some tweaking of the code to get a better positioning, font size, etc.

    1 person found this answer helpful.
    0 comments No comments
